Shaft Forgings
Controlled through delivery.
Custom shaft forgings for heavy duty equipment manufacturing, power transmission equipment manufacturing, industrial equipment manufacturing, and other demanding applications manufacturing.
- Customer drawings
- Heat treatment
- Inspection reports
Custom Materials · Heat Treatment · Machining
Built around the
drawing.
Controlled through
delivery.
Every custom forging begins with a technical review of material, geometry, heat treatment, machining allowance and inspection requirements. The production route is defined before quotation and confirmed against the project specification.
01
Produced to drawings, samples or technical specifications.
02
Forging, heat treatment, machining and inspection.
03
Material, dimensional and test reports supplied.
PRODUCT RANGE
Shaft forging types
Purpose-shaped components for demanding drive, transmission and rotating equipment.
Hollow Shaft Forgings
Reduced weight and material use without compromising performance.
SELECTED COMPONENTS
Featured shaft forgings
Representative configurations. Dimensions, grades and processing routes are customized for each project.

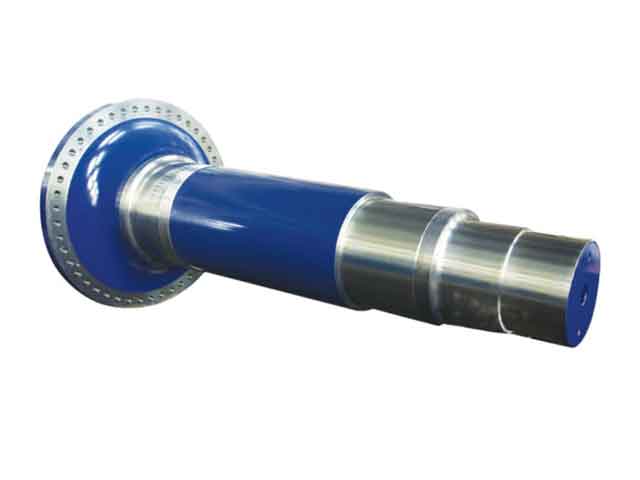

4140 Flanged Shaft Forgings
Multiple diameters for gearboxes, drives and heavy machinery.

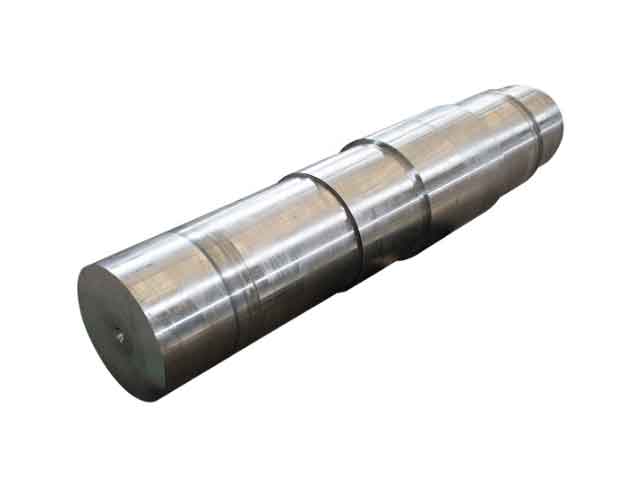

4140 Step Shaft Forgings
Multiple diameters for gearboxes, drives and heavy machinery.

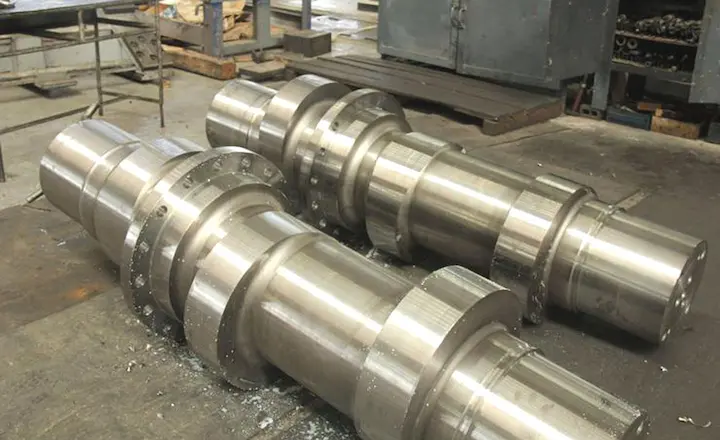

4340 Eccentric Shaft Forgings
Multiple diameters for gearboxes, drives and heavy machinery.
4140 Hollow Shaft Forgings
Multiple diameters for gearboxes, drives and heavy machinery.
DOCUMENTED QUALITY
STEEL GRADES FOR CUSTOM FORGINGS
Carbon, alloy and stainless steel grades are reviewed against load, service temperature, heat treatment and test requirements.
MANUFACTURING SCOPE
FORGING AND PROCESSING CAPABILITIES
Actual dimensional and weight limits are confirmed after drawing review.
01
Manufacturing method
Open die forging
02
Materials
Carbon, alloy & stainless steels
03
Heat Treatment
Normalizing, annealing, Q&T
04
Machining
Rough & finish machining
05
Testing
UT, MT, mechanical & dimensional
06
Production basis
Customer drawings & specifications
From drawing review to delivery
01
Drawing, material, quantity, tolerances and standards.
02
Production route, material, machining allowance and lead time.
03
Coordinate manufacturing stages and required quality records.
04
Reports, export packing and shipment support.
Records that travel
with the forging.
Inspection requirements are defined during quotation—not added as an afterthought. Available documentation is confirmed against the project specification before production.
Material certificates & heat traceability
✓
Dimensional inspection report
✓
Ultrasonic / magnetic particle report
✓
Mechanical properties report
✓
Final documentation package
✓
Have a drawing ready?
Send your drawing, material grade, dimensions, quantity and inspection requirements for manufacturing review.
