H13 Tool Steel

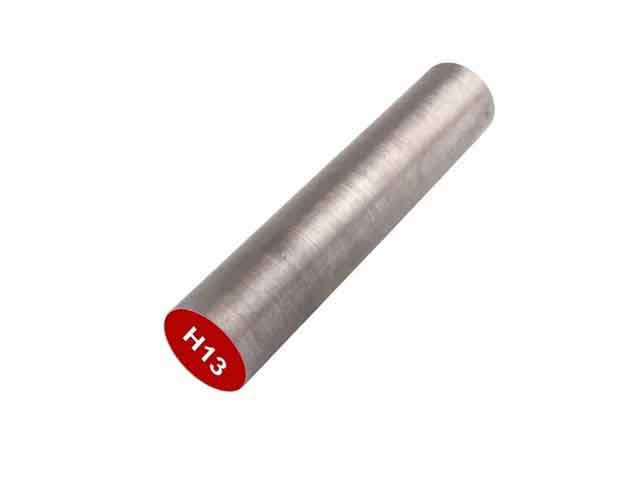

Our H13 hot-work tool steel forgings are widely used as the blank material for hot-working molds. We can provide customized rough-machined H13 steel forgings, H13 tool steel round bars, and H13 tool steel flat bars.

Premium quality with 100% UT
Competitive price in the market
Quick delivery for your project
Professional consultation

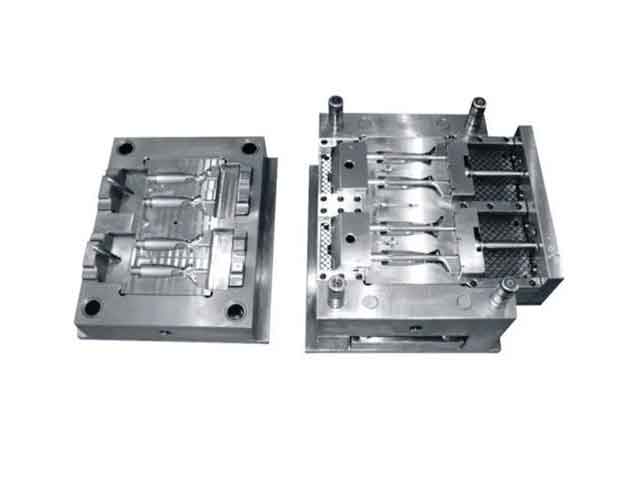

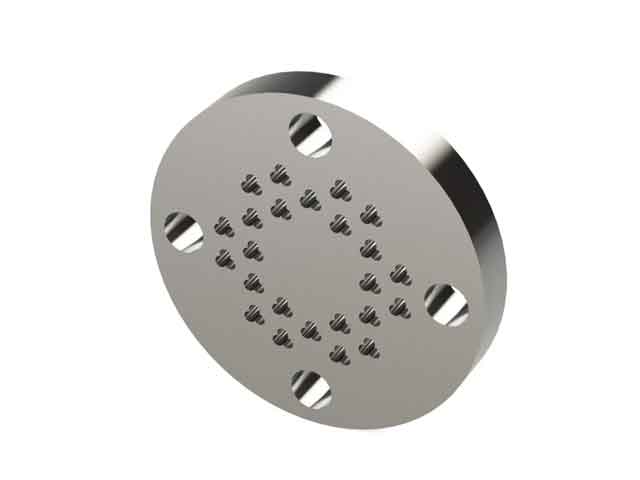

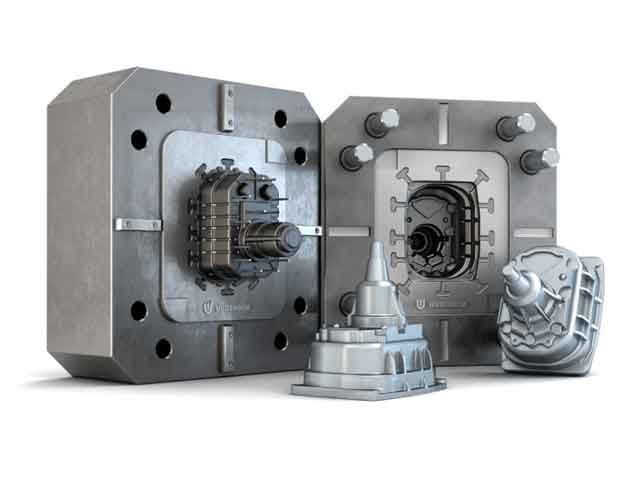

H13 Tool Steel Forgings Applications:

Our H13 hot-work tool steel forgings are widely used as the blank material for hot working molds. We can provide customized rough-machined H13 steel forgings, H13 tool steel round bars, and H13 tool steel flat bars.

H13 Tool Steel Key Characteristics：

High hardenability and heat treatment stability: H13 steel forgings have high hardenability. The deformation is very small after heat treatment. The hardness of H13 steel can be flexibly controlled through quenching and tempering.
High-temperature stability: H13 steel forgings have high strength and hardness at high temperatures.
Excellent resistance to thermal fatigue: Our H13 steel has high resistance to thermal cracking and thermal fatigue, and can withstand rapid heating and cooling environments such as water cooling.
Good toughness and wear resistance: Our H13 steel forgings have high toughness and high wear resistance because of the proper carbon content
Excellent oxidation and corrosion resistance: The addition of chromium and silicon forms a dense oxide film on the steel surface, improving oxidation resistance and resistance to liquid metal erosion
Machinability: H13 die steel has good machinability and can be machined into complex shapes.

H13 Tool Steel Forgings Manufacturer & Supplier

We are a leading supplier and manufacturer of H13 tool steel forgings in China.

Our H13 tool steel forging are widely used as the blank material for hot working molds.

We can also use electroslag remelting technology to improve the purity and enhance the crystallization quality. After electroslag remelting, the H13 ESR tool steel has higher toughness, greater wear resistance, and a longer service life.

H13 Tool Steel Properties

17CrNiMo6 alloy steel physical properties information table.

Properties	Metric	Metric Imperial
Density of H13 tool steel	around 7750 kg/m³	0.282 lb/in³
Melting point	around 1415-1460°C	2580-2660°F

AISI 4130 alloy steel mechanical properties information table.

Properties	Metric
H13 steel hardness after proper heat treatment:	45-52 HRC (Rockwell C)
H13 steel hardness in annealed condition:	30-35 HRC
H13 steel tensile strength at room temperature:	1200–1590 MPa (174 – 231 KSI)
H13 steel yield strength at room temperature:	1000–1380 MPa (145 – 200 KSI)
H13 tool steel machinability:	Moderate machinability. Around 55-70% of standard carbon steel.

AISI 4130 alloy steel thermal properties information table.

Properties	Metric
Thermal conductivity (@ 100°C)	17.6 W/m·K (at room temp) up to around 28.6 W/m·K (at higher temps)

H13 Tool Steel Chemical Composition

Steel Grade	Carbon, C	Silicon, Si	Manganese, Mn	Sulfur, S	Phosphorous, P	Chromium, Cr	Molybdenum, Mo	Nickel , Ni	Vanadium, V	Copper, Cu
H13	0.32/0.45	0.8/1.2	0.2/0.5	≤0.030	≤0.030	4.75/5.5	1.1/1.75	≤0.25	0.8/1.2	0.25

H13 Steel Equivalent

American USA	Germany DIN,WNr	China GB	Japan JIS
H13	DIN 1.2344	4Cr5MoSiV1	SKD61

Open Die Forging & Ring Rolling Forging

We possess multiple free forging machines and ring rolling machines. Our free forging machines includes a 1-ton air hammer, a 2-ton hydraulic hammer, a 5-ton hydraulic forging machine, a 3500-ton hydraulic forging machine, and multiple ring rolling machines.

Our custom forged parts can weigh up to 20,000 kg and have a maximum length of 20 m. The outer diameter of the forged rings can reach 4.5 m.

Why Choose WELL FORGE?

We are professional steel forging company in China for forged steel parts. Our factory is 200KM away from Shanghai Port. We are a modern management steel forging company targeting the international market.
